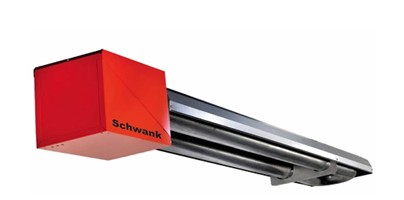

compactSchwank Commercial Infrared Garage Or Workshop U-Tube Heater
$2,500.00
Download Manual
Download Natural Gas to Liquid Propane Conversion Guide
Line Voltage Thermostat Spec Sheet
24V Digital Thermostat Manual
Download Wall Vent Spec Sheet
The Schwank P40U Series complements premierSchwank, builderSchwank and duraSchwank Series for compact factory assembled U-Tube assembled heater for Commercial or industrial applications.
Features:
- 40,000 BTU Natural Gas
- Heater Comes Standard Natural Gas, Optional Conversion Kit For LPG Available
- 10 Ft In Length
- Single Stage
- Painted Housing With Hinged Lower Panel And Single-Fastener Access For Servicing
- For Commercial & Industrial Applications
- 4″ Diameter U-Tube Provides 17′ Of Heat Exchange Tube In Compact 10′ Length
- 120V 3-Prong Plug
- Includes 4 Ft Lion Chain & 4 Safety Snap Hooks
- 24V Thermostat Not Included, But Available
- Factory Ready For 24VAC Or Line Voltage Thermostat
- Ceiling Mounted
- Mounting Height 8′-10′
- Average Heat Coverage Is Approximately 10′-15′
- Corrosion Resistant Aluminized Steel Construction
- Whisper Quiet Operation
- UL Listed
- MADE IN THE USA
Specifications:
- 120 Volt
- 24 Vac Controls
- 1/2″ Gas connection Size
Warranty:
- Includes 3-Year Tube, 3-Year Burner Cup, 3-Year Components
Additional information
| compactSchwank | 10 Ft Commercial 40K BTU Natural Gas U-Tube Heater |
|---|
