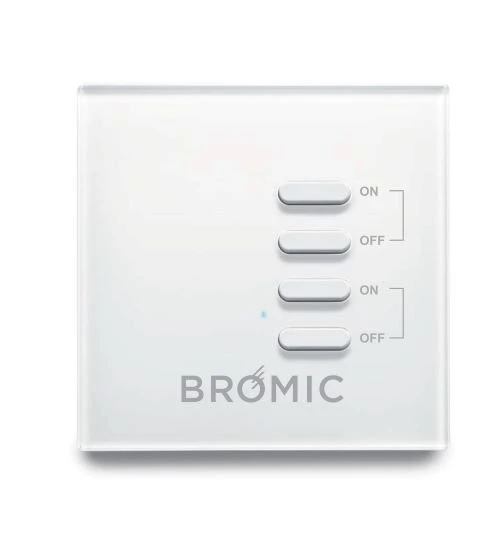

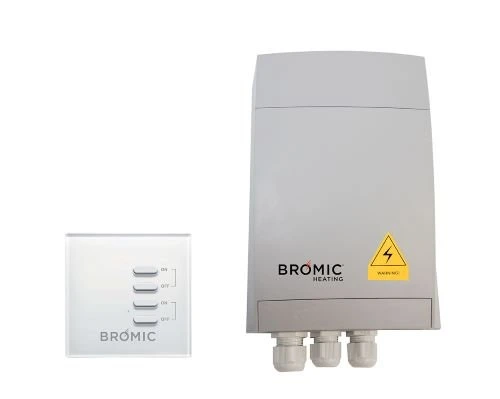

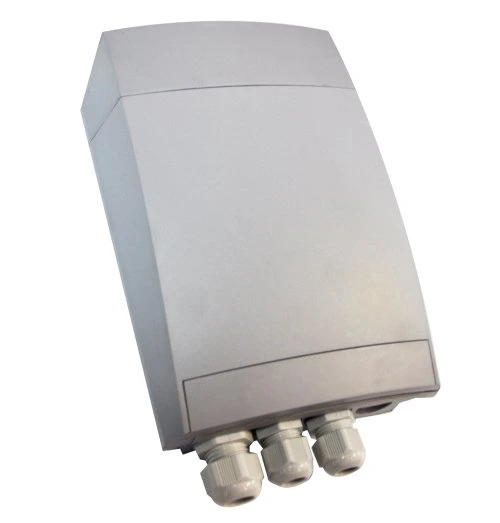

Bromic Affinity Smart-Heat Control On/Off
Starts at: $309.00
NEW
Bromic’s best in class controls have arrived with our Affinity Smart-Heat Collection. The new On/Off series streamlines installation and elevates custom comfort with management through our Bromic Heating App.
The Affinity On/Off series offers a simple and efficient way to control connected Platinum or Tungsten Collection of gas or electric Bromic heaters. Bromic heaters can be turned on or off at full power capacity, providing straight forward function and usage of your outdoor heater.
This series includes options for 1,2, and 5 channel inputs. Each channel input can control up to 6000 Watts of power or 10 gas heaters. Using the enabled Wi-Fi or Bluetooth connectivity, you can control and customize your comfort via the Bromic Heating App.
The upcoming 3-Phase 5-Channel model (available 2025) comes equipped with an expansion board, providing seamless Ethernet integration for a full proof connection to your outdoor heaters, as well as 0-10V control for Home or Business Automation systems.
| MODEL | Smart-Heat Control On/Off 1 CH | Smart-Heat Control On/Off 2 CH | Smart-Heat Control On/Off 5 CH |
| PART NUMBER | BH3130051 | BH3130052 | BH3130053 |
| NUMBER OF CHANNELS | 1 | 2 | 5 |
| VOLTAGE-MAX CAPACITY PER CHANNEL | 100-127V – 1kW 208-277V – 6kW | 100-127V – 1kW 208-277V – 6kW | 3N-220/380V – 6kW 3N-230/400V – 6kW 3N-240/415V – 6kW 3N-277/480V – 6kW 3- 120/208V – 6kW |
| OPERATING TEMPERATURE RANGE | -4°F to +86°F | -4°F to +86°F | -4°F to +86°F |
| NON-OPERATING TEMPERATURE RANGE | -22°F to +158°F | -22°F to +158°F | -22°F to +158°F |
| PROTECTION RATING | IP54 | IP54 | IP54 |
| DIMENSIONS | 11.4 x 8.0 x 4.4″ | 11.4 x 8.0 x 4.4″ | 19.7 x 13.4 x 8.0″ |
| WEIGHT | 3.1 lbs | 3.6 lbs | 24.3 lbs |
Dimensions
On/Off 1 & 2 Channel Dimensions
On/Off 5 Channel Dimensions
Mounting Options
Clearances
FAQs
What products can be used with the Affinity On/Off control series?
The Affinity On/Off Controls can be used with all Bromic Heating Platinum, Tungsten and Cobalt Electric and Gas Heater models.
How many heaters can I control with this controller?
Single Channel Controls are rated for 6kW maximum, Dual Channel controls are rated for 12 kW maximum. Both Single and Dual Channel options can control multiple heaters within their maximum capacity. Each channel can control up to 10 gas heaters.
A Single 6 kW On/Off Control is compatible with up to 10 Gas Heaters.
Examples:
- A Single 6 kW On/Off Control is compatible with 2 Platinum 2300W Electric Heaters.
- A Dual 12 kW OnOff Control is compatible with 2 Tungsten 6000W Electric Heaters.
Can I control elements individually with the Affinity On/Off control series?
Yes, when using the 12 kW Dual Channel On/Off Control, uses can control the dual elements of these heaters individually:
- Platinum 4500W
- Tungsten 4000W, 6000W
Do these controllers have a timer function?
The Bromic App includes both timer/scheduling function.
Additional information
| Channel | 1 CH BH3130051, 2 CH BH3130052, 5 CH BH3130053 (Coming 2025) |
|---|
