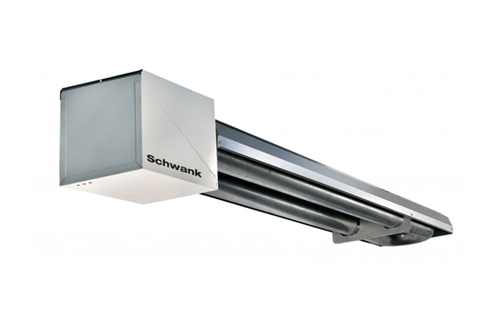

compactSchwank Residential Infrared Garage Or Workshop U-Tube Heater

Schwank’s 10-foot U-Tube residential garage or patio U-Tube heater provides the perfect comfort for your garage or workshop all year round. This U-Tube heater is approved as a vented room heater. This infrared radiant tube heater is inspired by Schwanks popular commercial products, so you get the efficiency and economy of much more expensive systems in this consumer unit. compactSchwank also uses their Whisper-Jet technology that makes it ultra quiet.

You will appreciate the long-wearing heavy-duty design. Plus, it comes pre-assembled for an easy installation right out of the box. It comes with an overhead mounting kit that requires only low clearances and hanging heights, and the unit can be angled 30-degrees in either direction to fit space.

Features:

• 40,000 BTU Natural Gas (Optional Conversion Kit For LPG Available)
• 10 Ft In Length
• Single Stage
• 120V 3-Prong Plug
• Includes A 24V Thermostat With 20 Ft Of 18/2 Wire
• Includes 4 Foot Lion Chain And 4 Safety Snap Hooks
• Ceiling Mounted
• Mounting Height 8′-10′
• Average Heat Coverage Is Approximately 10’x15′
• 4″ Diameter U-Tube Provides 17′ Of Heat Exchange Tube In Compact 10′ Length
• Corrosion Resistant Aluminized Steel Construction
• Low Clearances & Hanging Heights To Easily Mount In Any Garage Or Workshop
• Whisper Quiet Operation
• UL Listed
• Made In USA

Residential Use Approved:

• In A Vented Space
• Overhead Suspended Type
• ANSI/CSA Standards And Code Requirements Do Not Allow Direct Connection Of An Outside Combustion Air Duct To The Heater
• Rigid Connection To The Gas Supply Is In Compliance With Gas Code Requirements
• Optionally, An Installer May Choose To Connect To The Gas Supply Using A Metallic Flexible Gas Connector

Specifications:

• 120 Volt
• 24 Vac Controls
• 1/2″ Gas Connection Size
• Item Weight: 129.28 Lbs , Shipping Weight: 180 Lbs
• Overall Dimensions: 20.5″ L x 120″ W x 11.5″ H

Warranty:

• Includes 3-Year Tube, 3-Year Burner Cup, 3-Year Components
