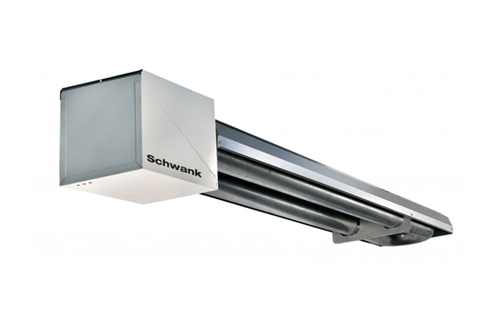

compactSchwank Residential Infrared Garage Or Workshop U-Tube Heater

Schwank’s 10-foot U-Tube residential garage or patio heater delivers year-round comfort for your garage or workshop while helping eliminate condensation that can damage tools. Approved as a vented room heater, this infrared radiant tube heater is inspired by Schwank’s proven commercial-grade products-bringing you the efficiency and economy of higher-end systems in a compact residential unit. Featuring Schwank’s Whisper-Jet technology, the compactSchwank operates ultra-quietly for comfortable, unobtrusive heating.

You’ll appreciate the long-wearing, heavy-duty construction, designed for reliable performance over time. The unit arrives pre-assembled for quick, hassle-free installation right out of the box. An included overhead mounting kit requires minimal clearances and hanging height, and the heater can be angled up to 30 degrees in either direction to accommodate a wide range of spaces.

Residential Use Approved:

• In a Vented Space
• Overhead Suspended Type
• ANSI/CSA Standards and Code Requirements Do Not Allow Direct Connection of an Outside Combustion Air Duct to the Heater
• Rigid Connection to the Gas Supply is in Compliance with Gas Code Requirements
• Optionally, an Installer May Choose to Connect to the Gas Supply Using a Metallic Flexible Gas Connector

Specifications:

• 120 Volt
• 24 Vac Controls
• 1/2″ Gas Connection Size
• Item Weight: 129.28 Lbs , Shipping Weight: 180 Lbs
• Overall Dimensions: 20.5″ L x 120″ W x 11.5″ H

Warranty:

• Includes 3-Year Tube, 3-Year Burner Cup, 3-Year Components
