Solaira Omnis Home Variable Phase Angle Control
Starts at: $1,328.00
Solaira Omnis variable phase angle control , multi-Voltage 120 or 208/240 volt panel is available in 30 AMP, 90 AMP, or 165 AMP total load. Includes Nema 1 Vented enclosure and low voltage Potentiameter. For variable control of single heater load with optional inputs including 0-10dCV, 4-20mA, Building Management Systems including Lutron, Crestron, Control 4 and others. Optional Timer, Occupancy Sensor, thermostat.
Product is Final Sale, cannot be returned or exchanged.
Product Range:
- 110V-240V Single Phase VAC, (ONLY)
- 30 to 200 AMP (up to 84,000W)
Input Options:
- 0-10DCv/4-20mA input
- BMS Building Management SYS
- (Lutron, Creston, Control 4) ready
- Occupancy/Motion Sensor Ready (Optional)
- Timer Ready (Optional)
- Thermostat Input Ready (Optional)
- Included:

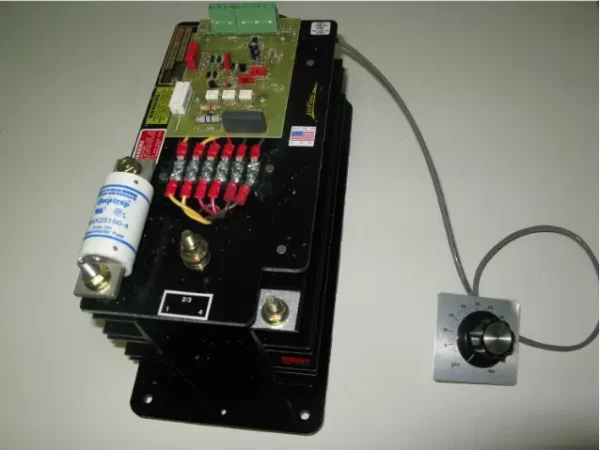

- Solaira OC PASCR Control

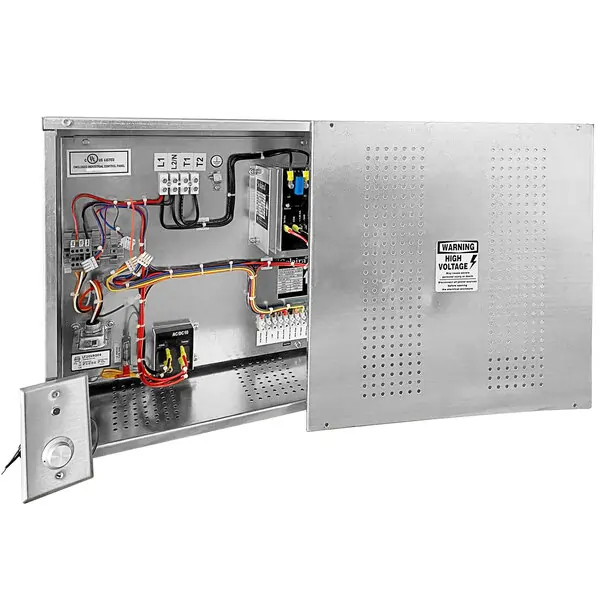

- Nema 1 vented enclosure
- Stainless on/off/variable Potentiometer-fits standard j-box
- Not Included:
- Solaira Heaters
Certifications:
- UL508 Approved Industrial
- CSA Approved Control Equipment
Universal Solaira Omnis OC Control:
- Ideal for easy spec/quick ship control systems
- Requires sub panel (distribution panel) for independent heater cut off –(Not sold by us)
Specifications:
- Length: 15”
- Width/Diameter (in): 16”
- Height: 9.5”
- Amperage: 90 amps, 165 amps, 30 amps
Additional information
| Choose Model | PASCR30-1-DIN Omnis 30A Control BMS Ready w/0-10dcv input, 120/208/240V, PASCR90-1-DIN Omnis 90A Control BMS ready w/0-10dcv input, 120/208/240V, PASCR165-1-DIN Omnis 165A Control GMS Ready w/0-10dcv input, 120/208/240V |
|---|
