SunStar GLASS
Starts at: $1,588.00

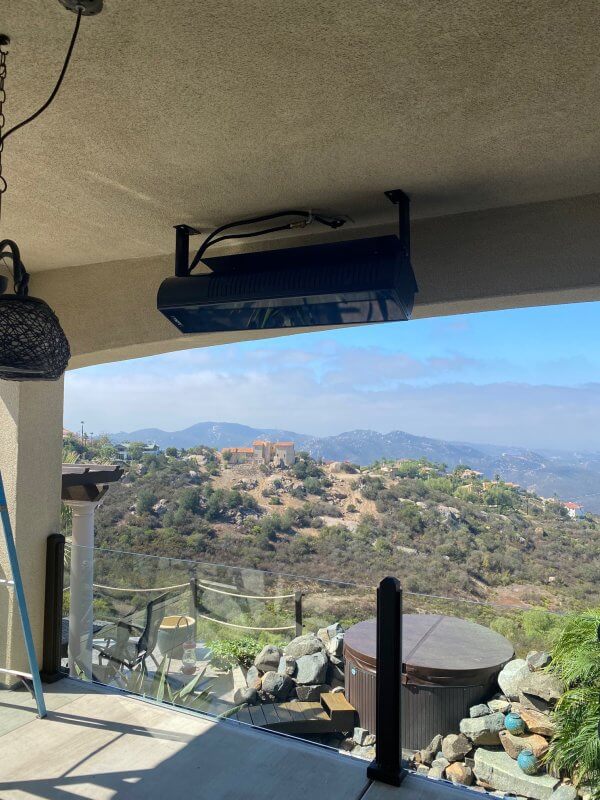

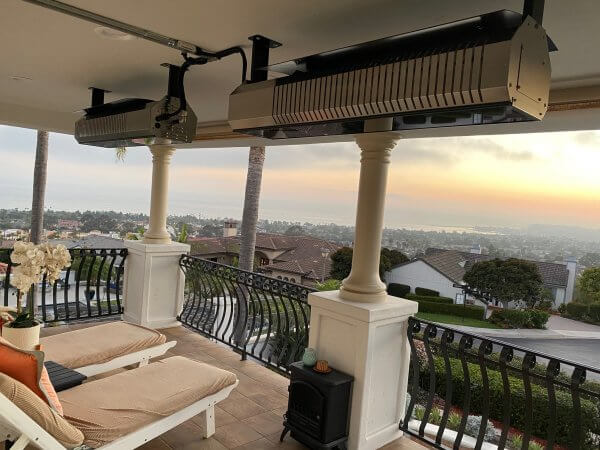

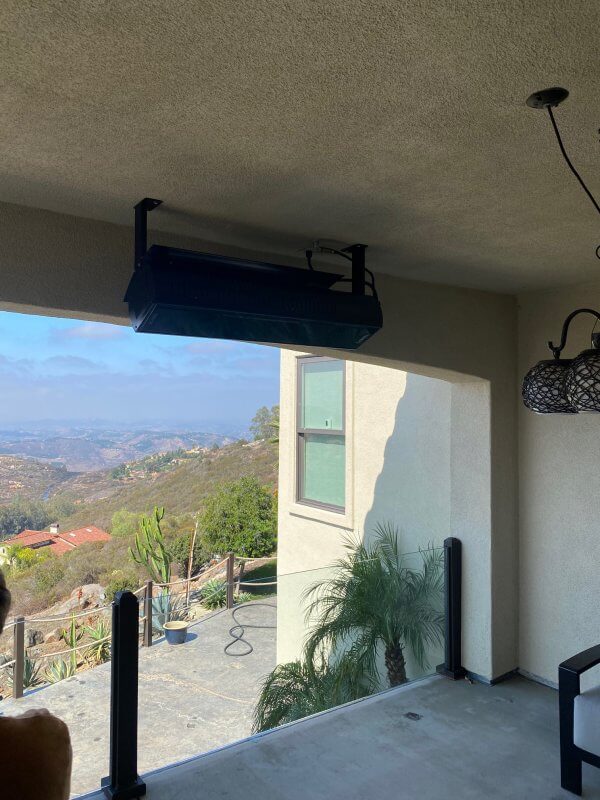

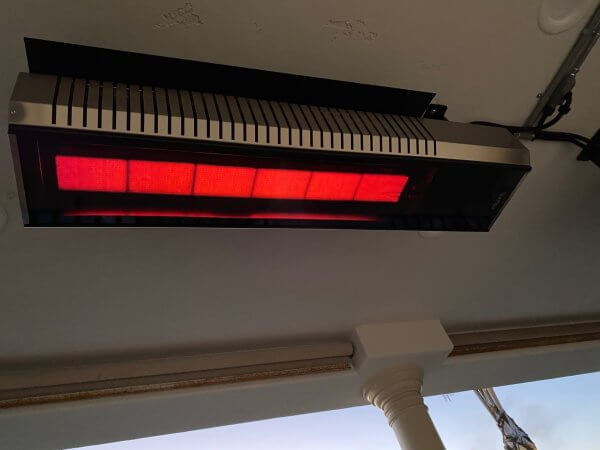

ONE OF OUR BEST SELLING PATIO HEATERS SGL35 Two-Stage 24,000 BTU For Low To 35,000 BTU For High, Available In Propane Or Natural Gas, Black Or 316 Stainless Steel Marine Grade, With Or Without A Remote. SGL50, The Newest 2023 Model That Is Available Is Also A Two-Stage 35,000 BTU For Low To 50,000 BTU For High, Available In Black With Or Without A Remote. The new GLASS radiant patio heater is SunStar’s newest line of heaters designed for residential, restaurants and other hospitality service industries. Made in the U.S.A From Mike: We here at Advanced Systems Co. install a wide variety of outdoor heaters and I feel as though this SunStar is one of the best heaters on the market today. Simple install, wiring is straight forward, standard 1/2″ gas line, strong brackets and packaging is done right to prevent damage. I personally installed two of the 316 Marine Grade, Two-Stage with remote controlled version on my own home and love them. They burn hot so I am glad I have the option of High 35,000 Btu/hr and Low 24,000 Btu/hr temps. The difference between High and Low is amazing and just right. Hands down the best ceramic patio heater out there and priced well.
Download Spec Sheet
Download Heating and Sizing Layout Guidelines:
Download Heater Accessories Guide:
Like the radiant warmth from the sun, radiant heat warms people and objects directly at floor level in addition to tables and seating warm up. Customers can dine and relax under the radiant warmth of the smoked glass decorative face. Maximize the use of your seating areas during those colder winter months.

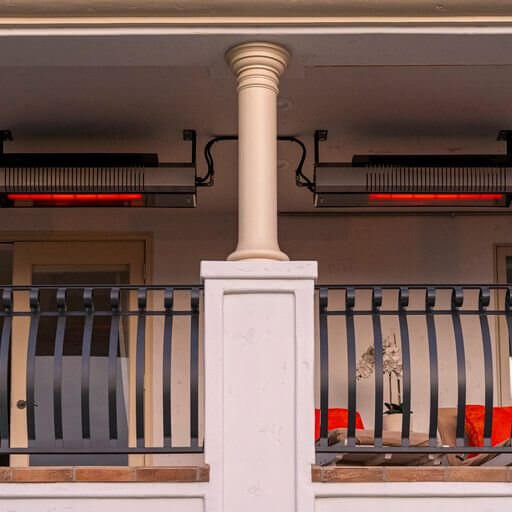

Ideal for outdoor or partially covered dining areas, bars, patios, verandas, smoking areas and other outdoor areas.

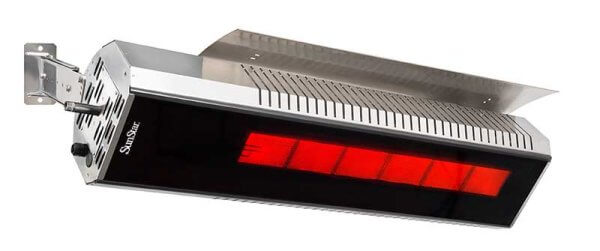

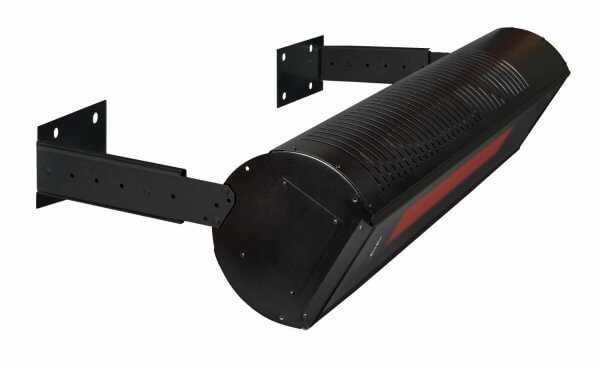

Optional mounting brackets, heat shield and switching is avalable.
- Covers 8 ft x 8 ft area in high wind conditions or 12 ft x 12 ft area in minimal wind conditions

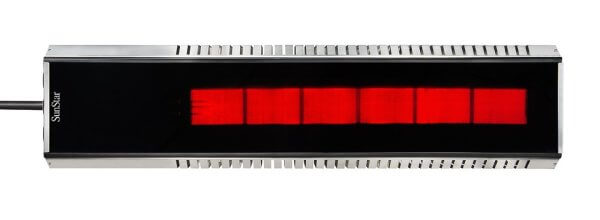

- Equipped with tinted glass front and can withstand up to 40MPH wind resistance
- Angle mount from horizontal to 60°
- Minimum mounting height at 45 degree angle: 7 to 9 ft
- Typical mounting height at horizontal: 8 ft to 11 ft
- High temperature silicone powder coated black paint
- Chain suspension or wall mounteds avalable
- CSA Design Certified -Z83.19 & Z83.26
- 3 year limited warranty on burner assembly and 1 year limited warranty on controls
HEATING CAPACITY
SGL35 Model 24,000 To 35,000 BTU
SGL50 Model 34,000 To 50,000 BTU
MOUNTING
Chain Suspension
Or Wall/Ceiling Brackets (HORIZONTAL OR UP TO 60°)
FUEL
Natural Gas Or Propane
ELECTRICAL
120VAC, 60Hz
IGNITION
Direct Spark
SGL Clearance to Combustibles
| Mounting Angle | Ceiling | Ceiling* w/Shield | Back | Back* w/Shield | Side | End | Below | Front |
| 0º | 20" | 10″ | N/A | N/A | 24″ | 12″ | 40″ | 48" |
| 30º | 23″ | 14″ | 8″ | 8″ | 24″ | 12″ | 40″ | 48" |
| 60º | 24″ | 17″ | 12″ | 12″ | 24″ | 12″ | 40″ | 48" |
Additional information
| BTU | 24K/35K, 34K/50K |
|---|---|
| Add Remote? | Yes, No Thank You |
| Finish | Black, Marine Grade Stainless Steel |
| Fuel Type | Natural Gas, Propane |
